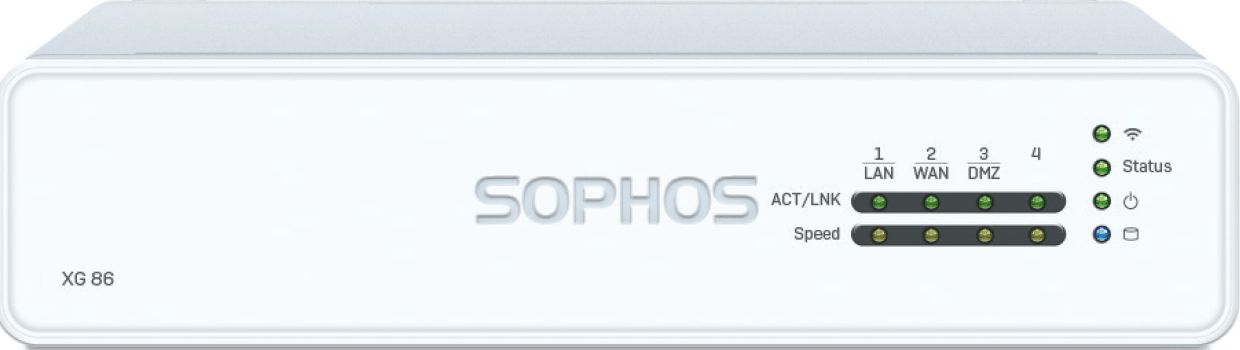

Sophos XG 86 Firewall

The Sophos XG series are powerful VPN firewalls with a diverse spec designed to suit a range of use cases, from private home office users to branch offices, all the way up to enterprise and data center level. A sleek white design combined with essential security features, including a practical, cloud-based central management system for easier day-to-day management. On this page, we take you through the key VPN specification for the XG 86, as well as all you need to know about setting up a VPN connection on your Sophos XG Series firewall for your Mac, iPhone or iPad.

VPN throughput	225 Mbps
Series	Sophos XG Next Generation Firewalls
Model	XG 86
Recommended for	Home office (1-5 users)
Supported VPN standards	IPsec
Built-in WiFi	optional
Additional features	Threat Protection & Firewall, Cloud-based Central Management System
RAM	4 GB
Device Status	Legacy

Configuration Guide (en, Web)
VPN Tracker 365
Sophos XG/XGS

Download VPN Tracker for Sophos

Configure VPN on a Sophos XG 86 firewall

Follow these steps to set up a VPN connection on your XG 86:

Retrieve the following network settings from your Sophos firewall's web interface: - WAN IP Address (or host name) - LAN Network
Under "Configure", select "Authentication" and go to the "Groups" tab. Here you can set up a new VPN user group: - For "Surfing Quota" choose "Unlimited Internet Access" - Under "Access time" determine when your group has access to the connection - For "Traffic Shaping", select "None"

Go to the "Users" tab and add a new user profile: - Create a username and password (you will need these in the next step!) - Under "Type", select "User" and choose a group.

Configure your connection: Go to "Configure", select "Remote Access VPN" and add a new IPSec connection: - Ensure "IPV4" is selected and check the box next to "Activate on Save". - For "Connection Type, select "Remote Access" - Encryption: Under "Policy" select "Default Policy" - Select Preshared Key and enter a secure password (you will need this in the next step!) - Gateway settings: For "Local ID Type", select "DNS" and enter a Local ID (e.g. Sophos) - For "Remote ID Type", select "DNS" again and enter your Remote ID (e.g. VPN Tracker) - Select "Any" for both the local and remote subnets.
Configure your firewall rules: Go to "Protect" and choose "Rules and Policies": - Rule 1 VPN to LAN: For "Action" select "Accept", Source Zones = VPN and Destination Zones = LAN. Under "Identity", uncheck "Match known users". Then, under "Advanced", go to "NAT & Routing" and uncheck "Rewrite source address (Masquerading)". Save your changes. - Rule 2 (optional) LAN to VPN: For "Action" select "Accept", Source Zones = LAN and Destination Zones = VPN. Under "Identity", uncheck "Match known users". Then, under "Advanced", go to "NAT & Routing" and uncheck "Rewrite source address (Masquerading)". Save your changes.

You are now ready to configure your connection on your Mac / iPhone / iPad. Get started
